Automatic Wire Cutting and Stripping Machine
Collect
产品编号 LL-503

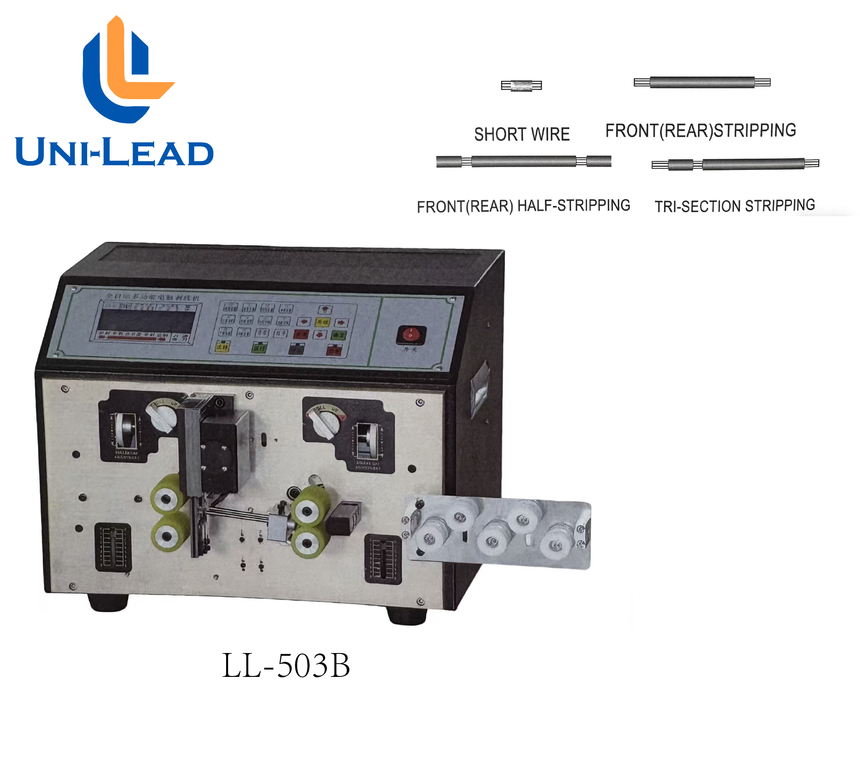

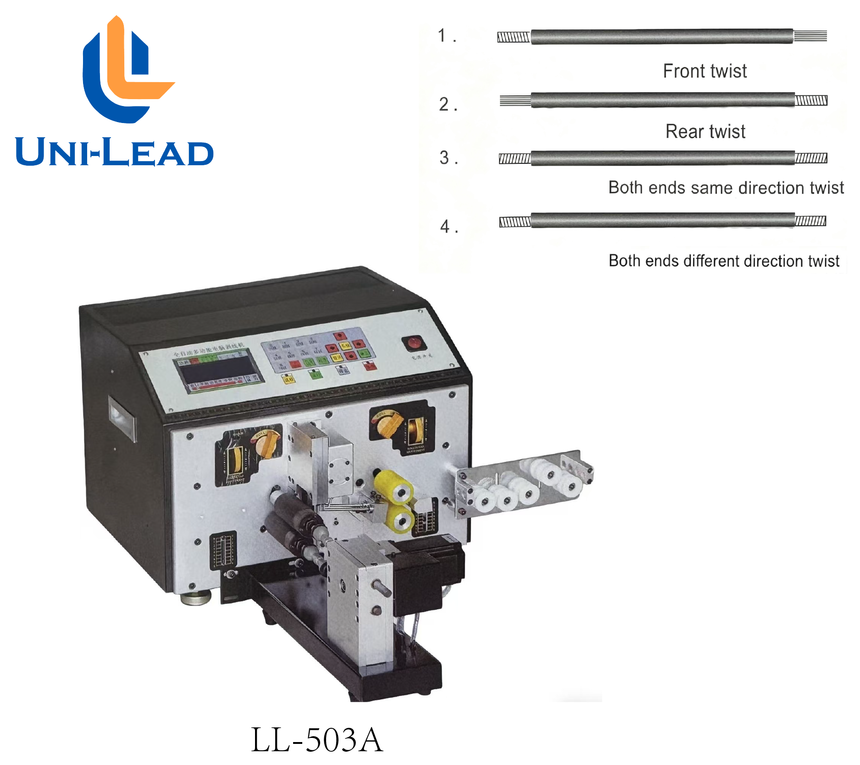

For electronic wires, silicone wires, Teflon wires, fiberglass wires, shielded wires, sleeving, etc., fully automatic cutting, stripping, partial stripping, center stripping, twisting, and other special functions, enabling instant switching of wire specifications.
Feature Description: The most advanced electronic products increasingly demand lightweight, thin, short, and compact designs. Consequently, the required wires are trending towards finer gauges, shorter lengths, and higher precision. This unit excels in these areas, performing exceptionally even with minimal lengths. Wires as short as 50mm, previously considered very difficult to process, now pose no challenge. It can even process a total length of just 1mm, simultaneously stripping 0.3mm from each end. The machine features independent control for wire feeding, blade engagement, retraction, and stripping speed. For shielded wires, it can perform a forced stripping length of up to 99mm, eliminating the traditional problems of being unable to fully strip long sections and the risk of damaging the core wire. |
