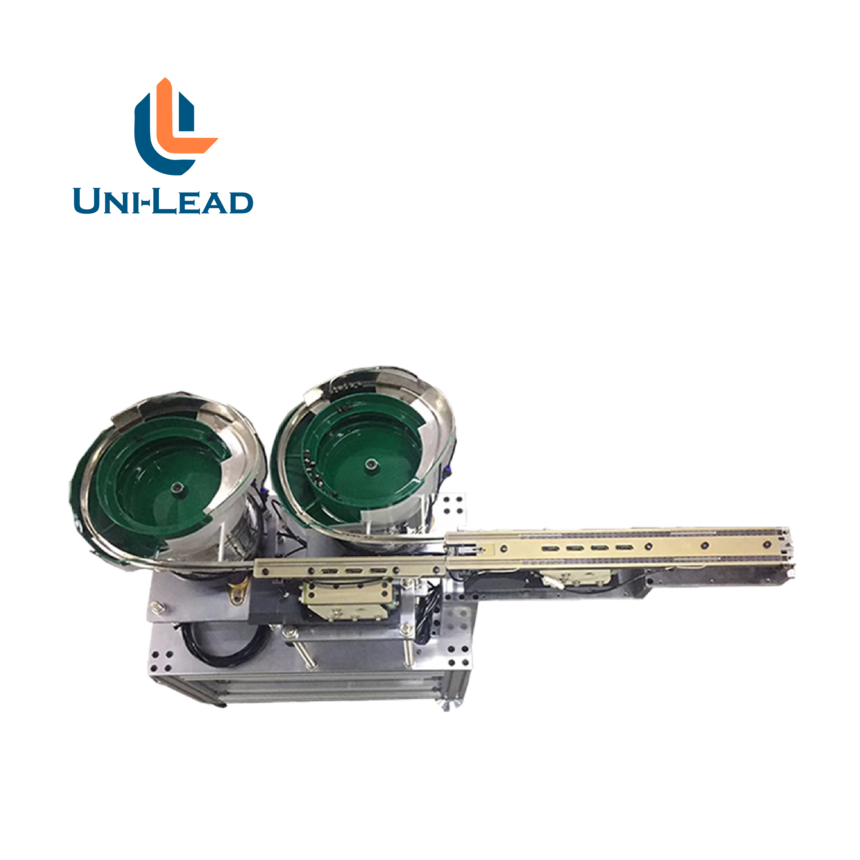

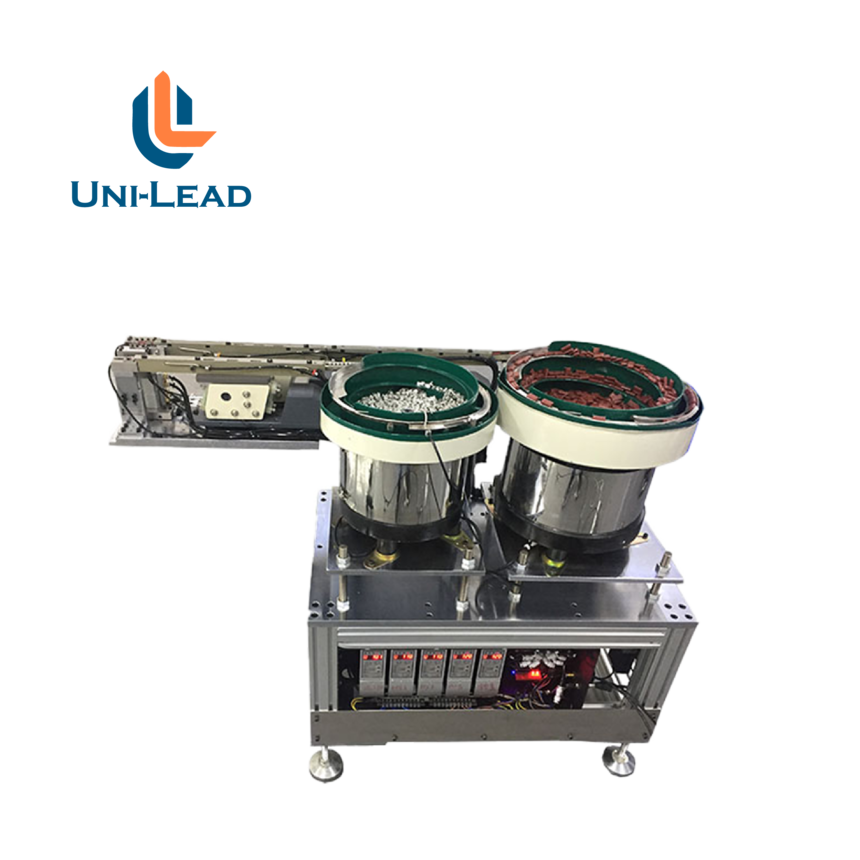

Vibrating Feeder - Double Bowl

Collect

商品说明

Product Dimensions	LWH	1120x460x910mm(front and rear bowl）
	LWH	760x460x910mm（single bowl）
	Weight	Double bowl：190Kg， Single bowl：150Kg

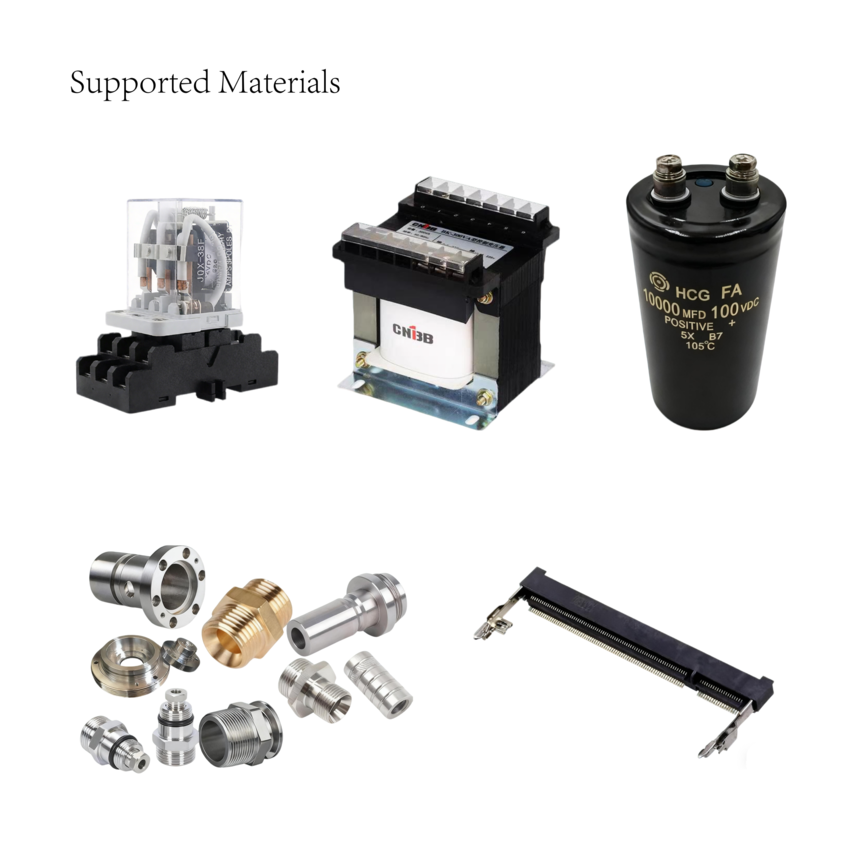

Supported Materials	Material Types	Electronic Components, Hardware, Plastic Parts, Connectors
	External Dimensions	3x3mm-50x50mm
	Material Weight	10g-300g
Structure Section	Feeding method	Bulk Material，Vibratory Bowl Feeding

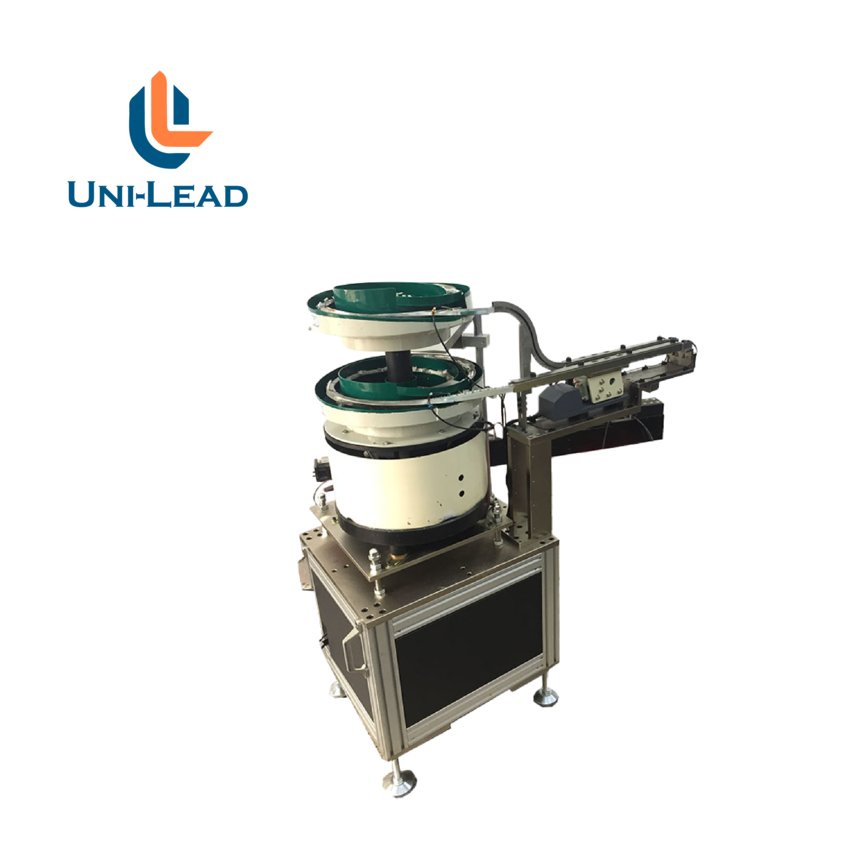

	Feeding Tray Configuration	Single Bowl Feeding，front and rear bowl feeding
	Material Transfer	Combination of linear vibration and air blowing.
	Material Positioning Method	Fiber Optic Sensor
	Mounting Method	Locating Key & Clamping Block (Alternative fastening structures supported).
	Polarity Sorting	Optional, configurable based on material requirements.
	Lead Trimming	Optional, configurable based on material requirements.
Electrical Section	Working Voltage	220V/50HZ
	Average Current/Peak Current	3A/6A
	Working Air Pressure	0.4-0.6Mpa
	Operation Method	Button Operation
	Host Computer Connection	8-pin ø16mm Aviation Plug
	Communication Method	Supports IO communication or standalone operation without external communication.
	Software Control	PLC
	Drive Method	Coil Drive
Feeding Section	Feeding Speed	0.8S
	Speed Control	Voltage and Frequency Adjustment
	Feeding Accuracy	±0.5mm
Testing record	Feeding Test	Achieves 2 hours continuous feeding without abnormality.
Testing record	Burn-in Test	48 hours of continuous fault-free operation.

Functional Features:

1. Universal Mounting for SMT Machines: Enables the vibratory bowl feeder to be mounted onto various SMT machines (or similar modified equipment). This facilitates automated component insertion, reduces labor costs, and maximizes the utilization rate of the SMT machine.

2. Feeding for Non-Standard Equipment: Allows bulk materials to be loaded via the feeder, supplying parts to diverse non-standard custom machinery. This streamlines the custom design process, while enhancing the equipment's operational stability and utilization.

3. Automated Sorting & Orientation: Utilizes the vibratory bowl to sort bulk materials, delivering them at a predefined output rate and in the correct, consistently oriented manner.

4. Robotic Arm Integration: The vibratory feeder can be seamlessly integrated with a robotic arm to achieve fully automated production, replacing manual labor.

5. Advanced Component Handling: The feeder is capable of performing critical pre-assembly functions, including orientation screening, polarity checking, lead trimming, and component forming.
