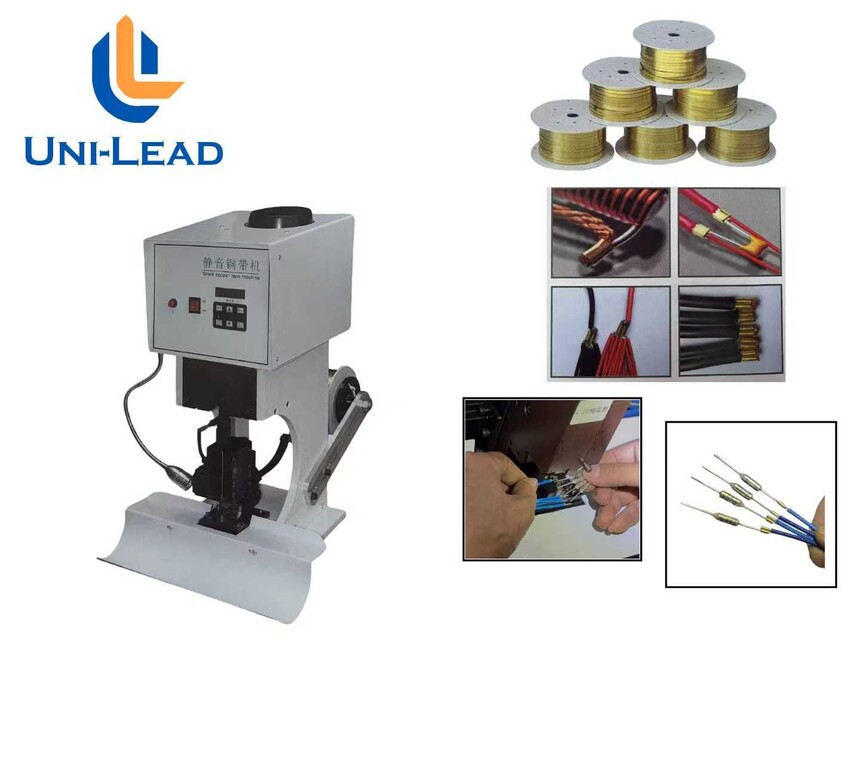

Scope of Application:
Connection between neon lamps and resistors, as well as between LEDs and wires.
Connection between slide switches and wires (replacing hook soldering).
Connection of high-temperature heating elements.
Connection of sensitive components (such as reed switches and thermal fuses).
Connection between transformer taps and wires.
Product Features:

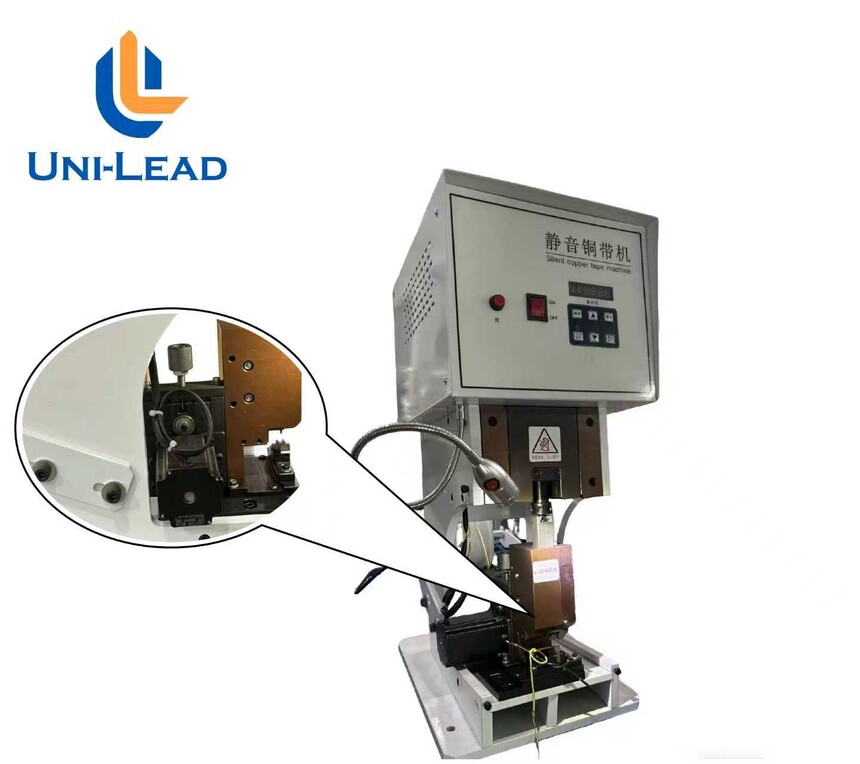

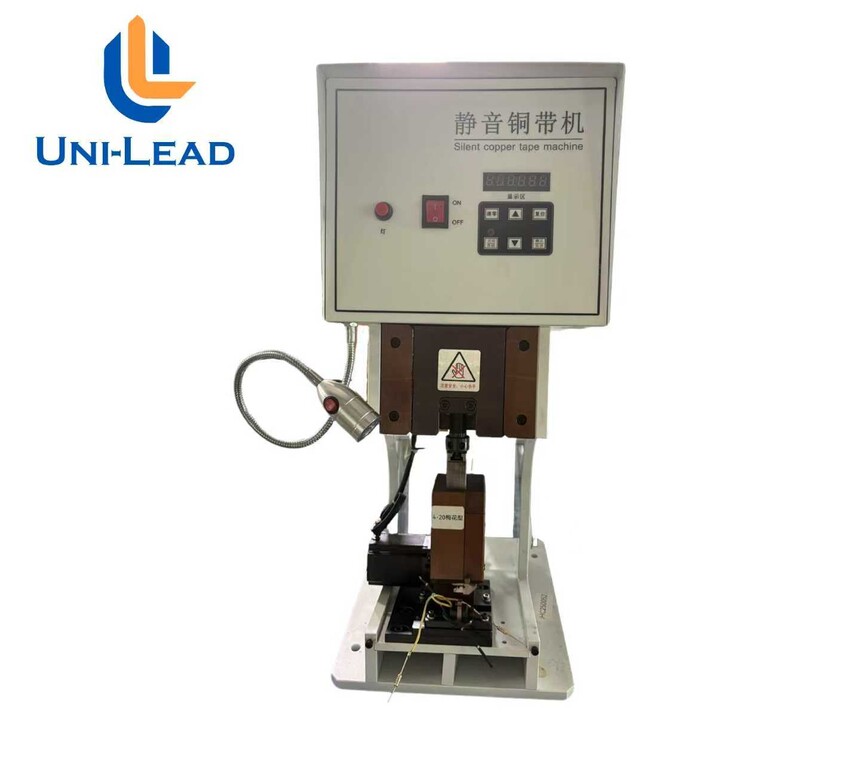

Incorporates advanced frequency conversion technology and electronic precision positioning. The motor operates only during crimping, resulting in lower noise compared to traditional copper strip machines, along with energy savings. Mold adjustment is more convenient and faster. It avoids common failures found in traditional machines, such as clutches and electromagnets. The motor feed and eccentric shaft are durable and resistant to breakage.
This machine is specifically designed for wires requiring crimping processing. It offers high speed and excellent quality, using a crimping method to connect wires, which replaces traditional soldering. It eliminates issues like cold solder joints, faulty solder joints, and air pollution. It is a simple and effective method to pass various safety standard tests (UL/JIS).
Utilizes a special continuous copper strip terminal (patented, imitation prohibited).
The process of cutting, forming, and crimping the terminal material is completed in one step, making it fast and generating no waste, thereby reducing costs. The copper strip terminal undergoes special texture treatment; after crimping, it exhibits exceptional pull-out resistance and stable quality. It is equipped with straight/bend mold bases for different product connection needs. The user-friendly design allows for immediate operation without the need for training.
| Model | LL-501 |
| Dimension | 620x420x680(mm) |
| Weight | 76kg |
| Power Supply | AC110V/220V |
| Horsepower | 0.75KW |
| Stroke | 2000KG |
| Copper Strip Size | 2mm/4mm/6mm |
