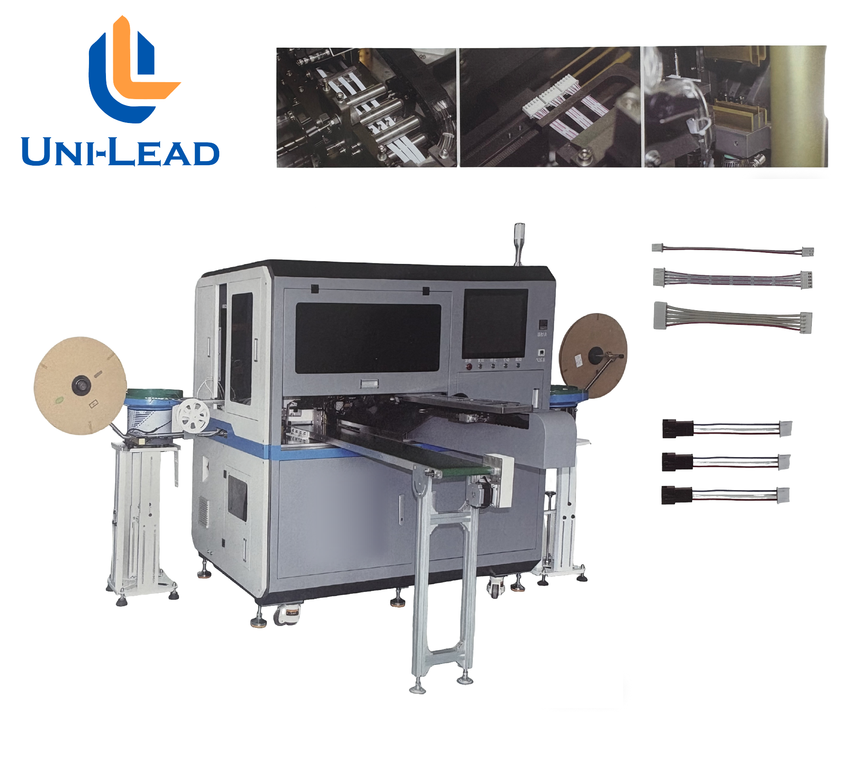

Fully Automatic Double-Ended Wire Arranging and Housing Insertion Machine

Collect

产品编号 LL-510

Motors: 12 sets of Mitsubishi servo motors, 3 sets of stepper motors, 2 sets of closed-loop motors.

Pneumatic Components: Festo solenoid valves, cylinders (by Airtac / SMC).

Ball Screws & Linear Guides: TBI.

Controller: Kinco.

Color Touchscreen: Kinco.

Other Electrical Components: Japanese Omron, Taiwan Jiezhun, etc.

Vision System: Tongyue.


Model	LL-510
Dimension (L x W x H)	1750 x 1250 x 1750 mm
Power Supply	AC 220V 50/60Hz Single Phase
Computer debugging	Blade position, strip length, and crimping depth - any anomaly will be displayed on the screen in real time
Function	Wire Cutting, Single-End Stripping, Double-End Stripping, Single-End Partial Strip, Single/Double Crimping, Single/Double Housing Insertion, Tin Plating
Applicable Wire	Applicable to various 22AWG-30AWG ribbon cables/hook-up wires, with pitch spacing of 0.8-3.96mm (Number of positions: 1-20P)
Processing capacity	400 PCS/Hour. For example, when processing 5-position wires, 3 lines can be processed simultaneously, achieving up to 1200 pieces/hour. The number of lines processed concurrently is determined based on the wire width.
Cut length	60mm-1000mm
Stripping Length	0mm-9mm
Power	2500W
Machine Weight	Approx. 850 kg ( Not include pay-off stand)
Inspection Functions	Conductor (wire) detection, housing insertion verification, crimp quality monitoring, wire twist/tangle detection, material presence detection, air pressure monitoring, crimp force monitoring (optional)
