Fully Automatic Sleeve & Heat Shrink Tubing Terminal Machine

Collect

产品编号 LL-509

Product Description
Specifications

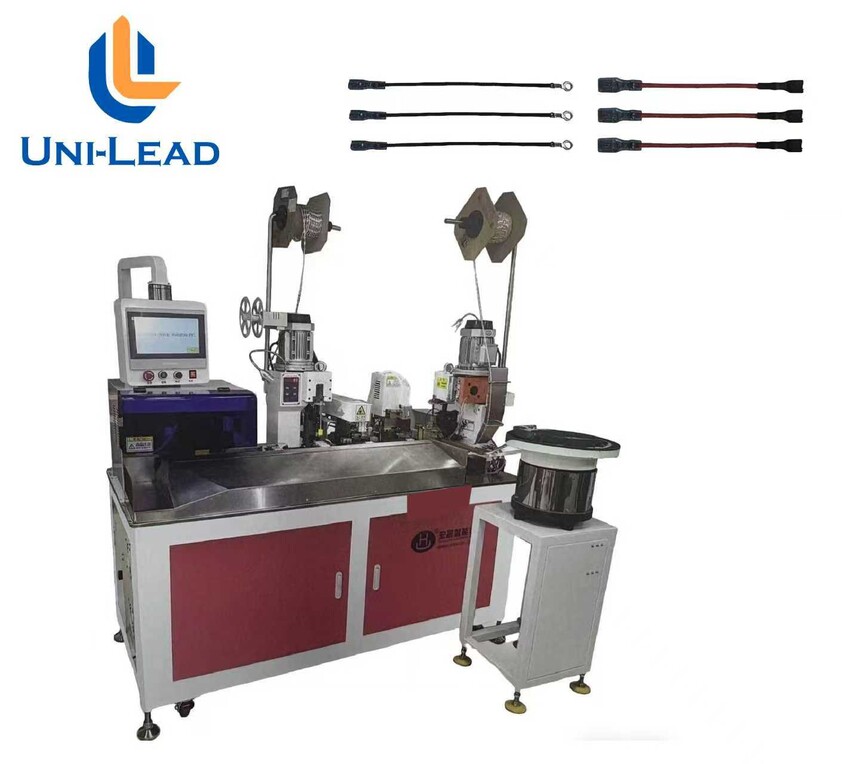

Fully Automatic Sleeve & Heat Shrink Tubing Terminal Machine

This equipment features dual-head synchronous operation with automatic vibratory bowl feeding. One head performs crimping, sleeve insertion, and heat shrinking, while the other simultaneously handles crimping and heat shrink tubing insertion in a seamless workflow. Equipped with an intuitive digital display for precise temperature control and an automatic fault alarm system, it ensures stable performance and enhanced efficiency while reducing labor costs.

Model	LL-509
Dimension (L x W x H)	1700 x 850 x 1500 mm (Excluding protrusions)
Power Supply	AC 220V 50/60Hz
Function	Wire Cutting，Single-End Stripping，Double-End Stripping，Single-End Crimping，Double-End Crimping，Single-End Sleeving，Sheathing
Processing Efficiency	Approx. 1750-2300pcs/h
Wire Dimension Range	AWG #24 - AWG #12
Cut length	60mm-9999mm
Cutting precision	Tolerance Range: 1mm + 0.1% of cut length or less.
Stripping Length	0mm-15mm
Sheath Type	Straight 187.250, PVC or Silicone.
Pipe Length	15-35mm,dia 3- dia 8
Machine Weight	Approx. 600 kg
Compressed Air	0.4~0.8MPa
Brand of Main Components	HIWIN (Taiwan) linear slide rails, Airtac (Taiwan) cylinders & solenoid valves, Leadshine closed-loop + servo motors, HIWIN (Taiwan) linear slide rails, imported Japanese bearings.
