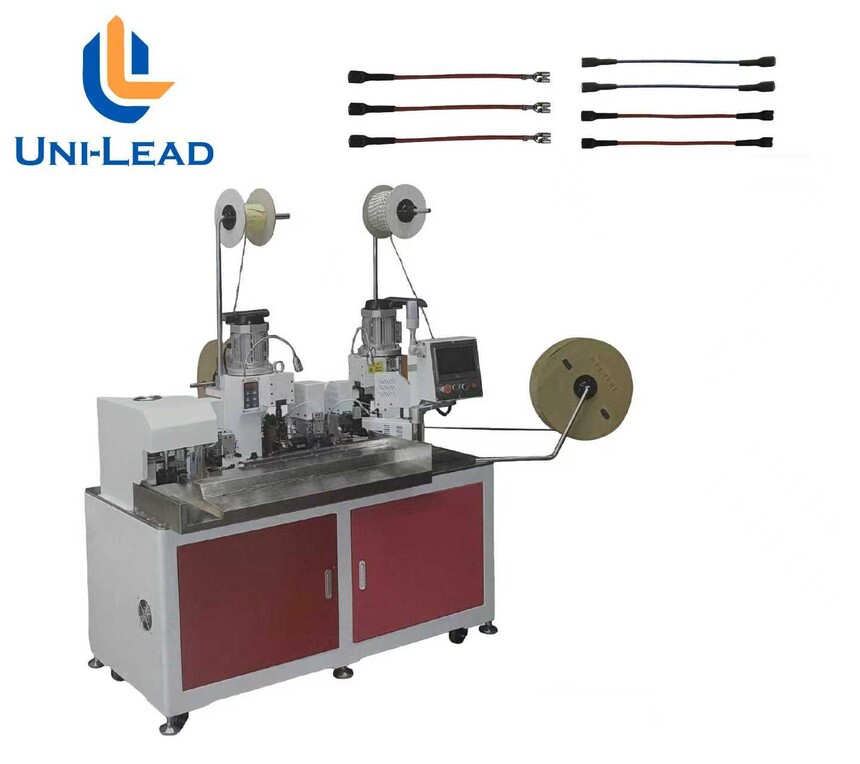

| Model | LL-511 |
| Dimension (L x W x H) | 2000 x 850 x 1450 mm (Excluding protrusions) |
| Power Supply | AC 220V 50/60Hz |
| Function | Wire Cutting, Single-End Stripping, Double-End Stripping, Single-End Crimping, Double-End Crimping, Single-End Sleeving, Double-End Sleeving |
| Processing Efficiency | Approx. 1000-1500pcs/h |
| Wire Dimension Range | AWG #24 - AWG #6 |
| Cut length | 60mm-9999mm |
| Cutting precision | Tolerance Range: 1mm + 0.1% of cut length or less. |
| Pipe Length | 15-35mm,dia 3- dia 9 |
| Machine Weight | Approx. 700 kg |
| Compressed Air | 0.4~0.8MPa |
| Brand of Main Components | HIWIN (Taiwan) linear guide rails, Airtac (Taiwan) cylinders & solenoid valves, Leadshine closed-loop + servo motors, HIWIN (Taiwan) linear guide rails, imported Japanese bearings. |
