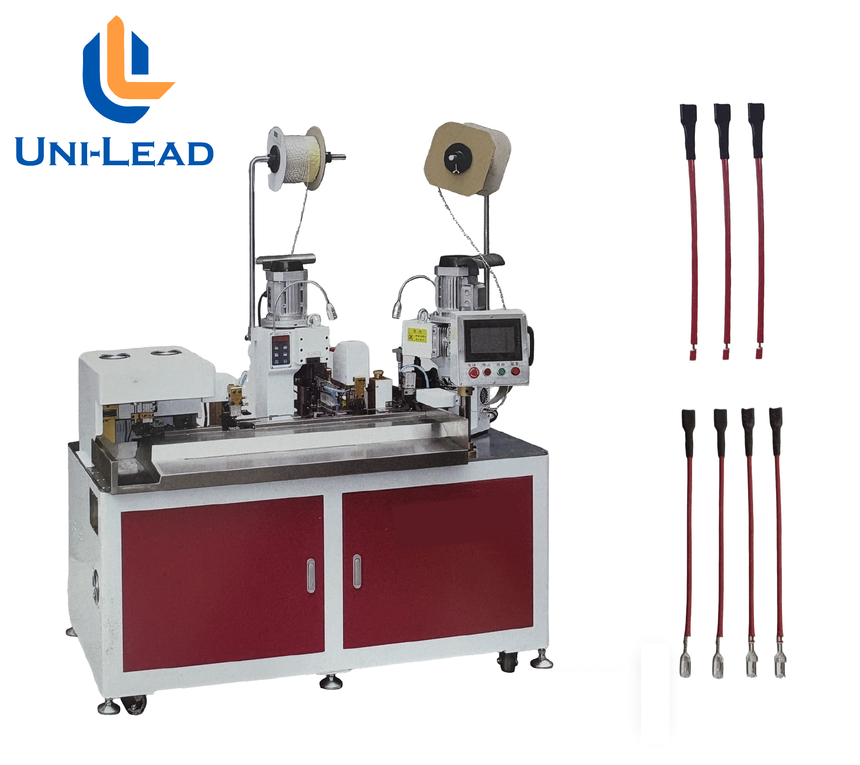

| Model | LL-505 |
| Machine Dimension (L x W x H) | 1700 x 850 x 1450 mm (Excluding protrusions) |
| Function | Wire cutting, single-end stripping, dual-end stripping, single-end crimping, dual-end crimping, automatic positioning and shrinking of single-end tubing. |
| Processing Capacity | Up to 2500 pcs/hour (Depending on wire material) |
| Power Supply | AC220V 50/60Hz |
| Wire Dimension Range | AWG #24 - AWG #6 (0.3 - 12mm²) |
| Cut Length | 60mm - 9999mm (Minimum cut length varies with stripping dimensions) |
| Cutting Precision | Variation range: 1mm+ less than 0.1% of cut length |
| Stripping Length | 0mm - 15mm |
| Pipe Length | 15mm - 35mm |
| Air Pressure | 0.4 - 0.8 MPa (Requires clean, dry air source) |
| Machine Weight | Approx. 600 kg |
| Brand of Main Components | HIWIN (Taiwan) linear guides, AIRTAC (Taiwan) cylinders & solenoid valves, Leadshine closed-loop stepper & servo motors, HIWIN (Taiwan) linear guides, Japanese imported bearings. |
